High Quality Piston Pneumatic Liquid Filling Machine Large Capacity Liquid Filler for Soy Milk Juice Oil Detergent

pneumatic liquid filling machine large capacity

automatic liquid filler for soy milk juice

piston filling machine for oil detergent

Lugar de origen:

Guangdong, China

Nombre de la marca:

SAMMI

Certificación:

ISO-900

Contacta con nosotros

Solicitar una cita

High Quality Piston Pneumatic Liquid Filling Machine Large Capacity Liquid Filler for Soy Milk Juice Oil Detergent

Detalles del producto

Aplicación:

Bebida alimenticia

Tipo de embalaje:

Botellas

Material de embalaje:

de madera

Calificación Automática:

Semi-Automática

Tipo de motor:

Neumático

Válvula de tensión:

Las demás:

Dimensión ((L*W*H):

125*40*30 mm

Garantización:

1 año

puntos de venta clave:

Fácil de Operar

Material de llenado:

Cerveza, leche, agua, aceite, jugo

Precisión de llenado:

Menos del 1%

Informe de Prueba de Maquinaria:

Proporcionado

inspección de salida por video:

Proporcionado

Componentes básicos:

Las demás

Servicio postventa prestado:

Apoyo técnico por vídeo

Peso (KG):

Volumen de llenado:

500 ml, 200 ml, 1 L, 400 ml, 300 ml, 100 ml

El material:

Acero inoxidable

Aplicación:

El médico

Tipo de Marketing:

Nuevo producto 2020

Resaltar:

pneumatic liquid filling machine large capacity

automatic liquid filler for soy milk juice

piston filling machine for oil detergent

Condiciones de pago y envío

Cantidad de orden mínima

1 conjunto

Precio

$350-400 / set

Productos relacionados

Professional Ultrasonic Plastic Tube Sealing Machine Multi-function Soft Tube Filler and Sealer Machine with Coding Function

Obtenga el mejor precio

Customized Ultrasonic Plastic Soft Tube Filling & Sealing Machine for Cosmetic Cream Toothpaste - with Servo Pump&Coding

Obtenga el mejor precio

Automatic Four-Head Oral Liquid Filling Machine Simple Operation for Milk Juice Soy Sauce Vinegar Beer 5 ml to 500 ml Big Volume

Obtenga el mejor precio

Hot Sale Semi Automatic Small Vial Bottle Filling and Capping Machine Glass Bottle Jar Vacuum Capping Machine

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

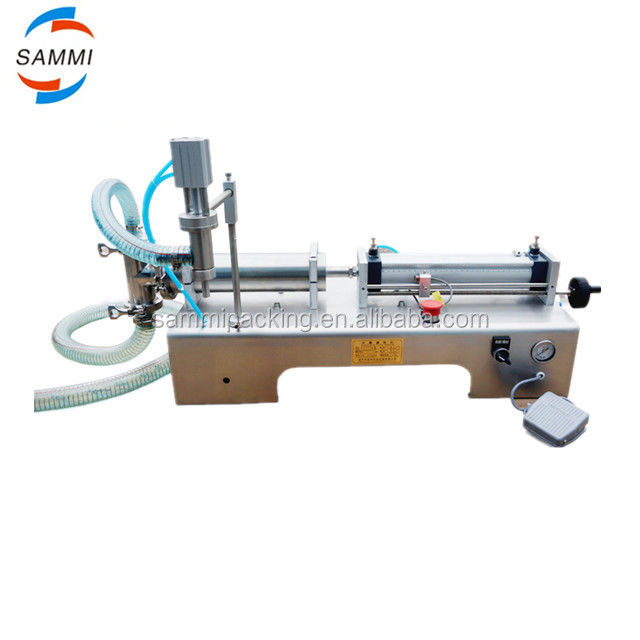

Piston Pneumatic Liquid filling machine,Volumetric filling machine,soy milk filler

Principle:

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Characteristic:

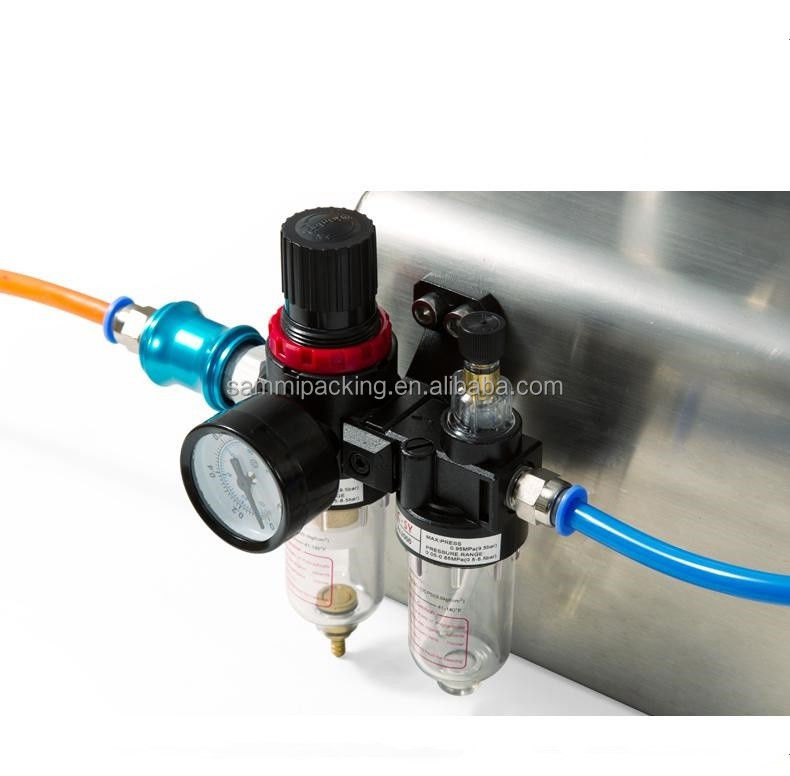

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Technical Parameters:

Machine model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-2500	G1WY-5000
Filling speed	5-20b/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	250-2500ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	≤±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can be customized according to customer,s requirement

Filling material sample
